ATS Metal Clutches

The ATS Metal Clutch is a high performance clutch which covers all driving stages from street to racing competitions.

The ATS metal clutch is manufactured with the extensive experiences ATS had in the performance drive train industry. Utilizing a 9 inch (230mm) diameter metal clutch disc, the torque capacity has been significantly raised and the cushioning disc design ensures the very smooth engagement. From the disc to a tiny bolt, all ATS parts are carefully selected to meet ATS's high standard of quality. In the process of manufacturing, extra attention is paid to ensure the clutch is very light without increasing vibration levels and without sacrificing its structural strength. From an ATS single to triple clutch, the ATS metal clutch generates superior shift feel with excellent performance and durability.

In 2012 November, with the change to the center hub design, we have expanded the application dramatically.

new metal clutch

Cushioning desk

There is a general perception that the engagement of a metal clutch (especially multi plate metal clutch) is hash and not very streetable. Our metal clutch has been evolving and the current one can provide a very smooth engagement very close to carbon clutch.

Carbon can offer the soft engagement from its material characteristics. On the other hand, our metal disc offers a smooth engagement from ingenious design. Our metal disc is not pure flat and is designed to work a kind of cushion when the disc is engaged against the metal plate. We named it "Cushioning disc".

Please click here for cushioning disc diagram

See the ATS metal clutch ad on Rev magazine


Center Hub Design

The metal clutch uses the same center hub design as our carbon clutch. The metal disc and carbon disc is interchangeable. Your metal disc can easily be replaced with a carbon disc.

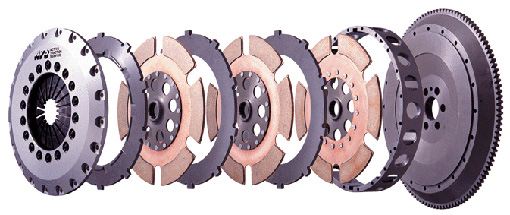

ATS Metal Clutch features

* Outstanding torque delivery from the 9 inch diameter friction disc
* Rated horse power – Single up to 400 hp, Twin up to 750 hp, & Triple up to 1,100 hp
* A super light clutch disc insures excellent clutch response and shift feeling
* The high precision manufacturing process reduces operational vibration to a minimum
* The Single Metal Clutch is named the “ 9 inch magnum” and boasts one of the lightest total weight among our competition.

New release    ATS Metal Clutch Spec II
     With the same concept of ATS carbon clutch Spec II applied, ATS metal clutches have been upgraded for lighter pedal effort and more torque delivery. The single metal clutch (9 inch magnum) Spec II is available with 1,600kg & 2,200kg clamping rate and Spec II twin metal clutches come with 1,100kg to 1,900kg clamping rate. Spec II is also available in several triple metal clutches..

please click for the application list

     Button repair parts
please click for the repair parts list

single clutch
twin clutch
Single metal clutch ( 9 inch Magnum)
Triple metal clutch

Civic FD
